Make your home life easier with a PLI QuickServe-200 Residential Dumbwaiter installed by Personal Elevator, LLC.

QUICKSERVE-200 RESIDENTIAL DUMBWAITER

The QuickServe-200 Residential Dumbwaiter can make daily tasks a breeze when it comes to transporting heavy or bulky items between floors. Whether you’re moving laundry to the utility room, sending groceries to the kitchen, or lifting firewood to the living room, the QuickServe-200 pound weight capacity makes it more than capable for most household dumbwaiter applications. A shelf is included but can easily be removed to transport any taller items. Optional larger car size has a 300-pound weight capacity.

Driven by a chain drive machine that can be mounted at the top or bottom of the hoistway, the QuickServer-200 travels at up to 32 fpm along aluminum guide rails. Instant safeties prevent the car from falling in the event of a chain failure, while the mechanical limit switches provide over travel protection and slack chain detection. For added safety, interlocks come standard, preventing the doors from opening unless the car is present, and preventing the car from moving until the door is closed.

Call/send stations allow you to send and retrieve the dumbwaiter from any level and feature “car here” and “in-use” indicator lights.

PLI Precision Lift logo elevators installed by Personal Elevator, LLC
PLI Precision Lift logo elevators installed by Personal Elevator, LLC

Make your home life easier with a PLI QuickServe-200 Residential Dumbwaiter installed by Personal Elevator, LLC.

QUICKSERVE-200 RESIDENTIAL DUMBWAITER

The QuickServe-200 Residential Dumbwaiter can make daily tasks a breeze when it comes to transporting heavy or bulky items between floors. Whether you’re moving laundry to the utility room, sending groceries to the kitchen, or lifting firewood to the living room, the QuickServe-200 pound weight capacity makes it more than capable for most household dumbwaiter applications. A shelf is included but can easily be removed to transport any taller items. Optional larger car size has a 300-pound weight capacity.

Driven by a chain drive machine that can be mounted at the top or bottom of the hoistway, the QuickServer-200 travels at up to 32 fpm along aluminum guide rails. Instant safeties prevent the car from falling in the event of a chain failure, while the mechanical limit switches provide over travel protection and slack chain detection. For added safety, interlocks come standard, preventing the doors from opening unless the car is present, and preventing the car from moving until the door is closed.

Call/send stations allow you to send and retrieve the dumbwaiter from any level and feature “car here” and “in-use” indicator lights.

QuickServe-200

Personal Elevator offers PLI residential dumbwaiters in custom sizes and configurations as well as a number of custom finishes and options.

Standard White Laminate Car

Also available in Oak, Cherry, Mahogany or Maple plywoods, either unfinished or pre-finished.

Very durable and easy to clean
Bi-parting doors keep cargo secure
Custom sizes are available in 1” increments.

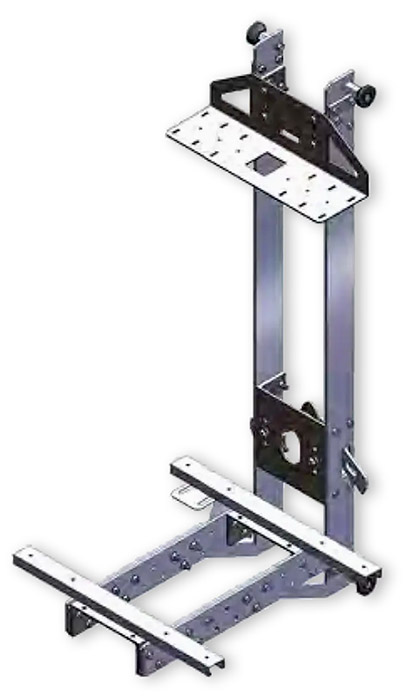

PLI Dumbwaiter rail carriage

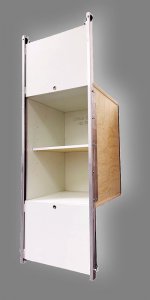

PLI Standard White Laminate Car

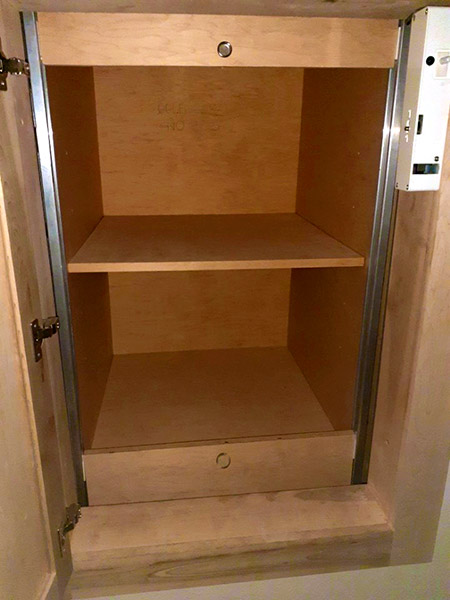

PLI Dumbwaiter doors open position

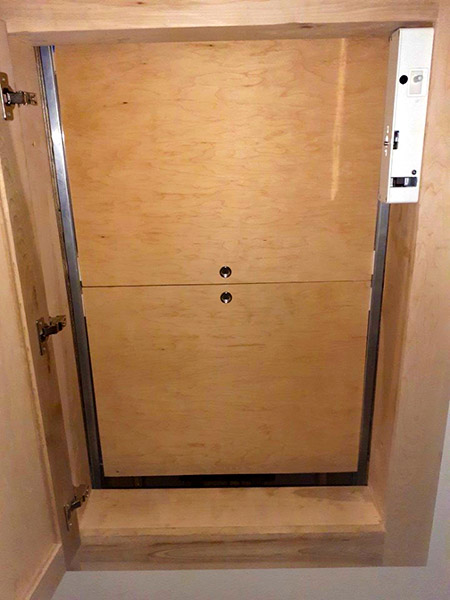

PLI Dumbwaiter doors closed position

Standard Product Specifications

  • Max Travel – Standard 12′
  • Car Size – 20Wx20D or 24Wx24D and 30H or 36H
  • Stops – 2
  • Weight Capacity – 200 pounds
  • Stainless Steel Panel Option
  • Hardwood Door Option
  • Straight Through Car Option
  • 90° Car Option

Optional Product Specifications

  • Max Travel – 51′
  • Car Size – Min car size for side mount rails: 14Wx17D, for rear mount rails, 14Wx14D. Max car size 30Wx30D.
  • Stops – 3 or 4
  • Weight Capacity – 300 pounds
  • Stainless Steel Panel Option
  • Hardwood Door Option
  • Straight Through Car Option
  • 90° Car Option
Options Available For The QuickServe-200 Residential Dumbwaiter

CAR CONFIGURATION – AS VIEWED FROM BOTTOM LANDING

Single Opening – Right
single opening right dumbwaiter car
Single Opening – Left
single opening left dumbwaiter car
Single Opening – Front
single opening front dumbwaiter car
Straight Through
straight through opening dumbwaiter car
90 Degree – Right

Only available in wood materials and in the 3 standard sizes.

90 degree right opening dumbwaiter car
90 Degree – Left

Only available in wood materials and in the 3 standard sizes.

90 degree left opening dumbwaiter car

STOPS

  • 2 Stops
  • 3 Stops
  • 4 Stops

CAR MATERIALS

  • Laminate
  • Veneer
  • Stainless Steel

CAPACITY 950 lbs

PLI dumbwaiter schematic
CAR WIDTH & DEPTH
(INSIDE CLEAR)
LAMINATE, VENEER

Standard Sizes*

  • 20″W x 20″D – Standard
  • 24″W x 24″D – Standard
  • 30″W x 30″D – Standard – 300 Lb. Capacity
  • Custom – Smaller than 20″W x 20D
  • Custom – Larger than 20″W x 20D
  • Custom Oversize – Over 24″W and/or Over 24″D
Cab Heights

(Clear) All Materials

  • 30″ High
  • 36″ High
Call-Send Control Options
  • “Car Here” Indicators (Included)
  • Keylocks (per lock)
PLI Drawing Dumbwaiter Cab
OPTIONS

Standard Sizes*

  • Automatic In-Car Light
  • Float Level Switch
  • Machine Room Access Door – Kill Switch
  • Gate Switch on Car Gate
  • No Door & No Track
  • Second Shelf – Laminate or Veneer
Drive Machine Location
  • Mount at Bottom (Recommended)
  • Mount at Top
