PERSONAL ELEVATOR, LLC Residential Installers of Precision Lift Industries 9500 series Elite elevator.

PLI provides professional and trusted lifts products installed and serviced by Personal Elevator, LLC.

PLI 9500 Series Residential Elevator.

Precision Lift Industries 9500 series elevators exceed all industry standards in safety, performance, and reliability. Personal Elevator installs and delivers the PLI Elite residential elevator package offering unparalleled reliability, ease of service, and a smooth quiet ride. PLI elevators are engineered using the latest 3D engineering software and is factory tested in test towers before being certified by a well-know independent testing laboratory.

For a seamlessly perfect integrated home elevator, look no further then the Elite model from PLI WD-9500 and HD-9500 series elevators. The Elite effortlessly transports 950lbs up to 50′ in travel, at a rate of 40 fpm! Swing doors contain safety interlocks that are used to protect each floor level while blending with all other interior doors within your home. There are a wide range of cab sizes offered and an array of finishes available to match your house’s décor.

WD-9500 / Winding Drum Residential Elevators
  • Machine-Room-Less Design

Homeowners appreciate the machine-room-less design of the WD-9500 series, which integrates the motor assembly at the top of the elevator shaft, leaving only a small control panel to mount outside of the shaft. The design of the WD-9500 has the added benefit of being very durable in flood prone areas since all driving machines and controls are installed up high, out of harm’s way. A float switch can be added for additional flood zone protection.


HD-9500 / Hydraulic Drive Residential Elevators
  • Hydraulic Drive System

The HD-9500 is the perfect solution for homeowners that decide they want to own a hydraulic drive system. A hydraulic pump smoothly raises and lowers the elevator cab. The hydraulic drive system requires a small machine room within the house.

WD9500 / HD9500 series Residential Elevators are built to the latest National code standards, certified by ETL, and have robust safety monitoring circuits built into the controller to ensure the utmost safety.

PLI Precision Lift logo elevators installed by Personal Elevator, LLC
PLI Precision Lift logo elevators installed by Personal Elevator, LLC

PLI provides professional and trusted lifts products installed and serviced by Personal Elevator, LLC.

PLI 9500 Series Residential Elevator.

Precision Lift Industries 9500 series elevators exceed all industry standards in safety, performance, and reliability. Personal Elevator installs and delivers the PLI Elite residential elevator package offering unparalleled reliability, ease of service, and a smooth quiet ride. PLI elevators are engineered using the latest 3D engineering software and is factory tested in test towers before being certified by a well-know independent testing laboratory.

For a seamlessly perfect integrated home elevator, look no further then the Elite model from PLI WD-9500 and HD-9500 series elevators. The Elite effortlessly transports 950lbs up to 50′ in travel, at a rate of 40 fpm! Swing doors contain safety interlocks that are used to protect each floor level while blending with all other interior doors within your home. There are a wide range of cab sizes offered and an array of finishes available to match your house’s décor.

WD-9500 / Winding Drum Residential Elevators
  • Machine-Room-Less Design

Homeowners appreciate the machine-room-less design of the WD-9500 series, which integrates the motor assembly at the top of the elevator shaft, leaving only a small control panel to mount outside of the shaft. The design of the WD-9500 has the added benefit of being very durable in flood prone areas since all driving machines and controls are installed up high, out of harm’s way. A float switch can be added for additional flood zone protection.


HD-9500 / Hydraulic Drive Residential Elevators
  • Hydraulic Drive System

The HD-9500 is the perfect solution for homeowners that decide they want to own a hydraulic drive system. A hydraulic pump smoothly raises and lowers the elevator cab. The hydraulic drive system requires a small machine room within the house.

WD9500 / HD9500 series Residential Elevators are built to the latest National code standards, certified by ETL, and have robust safety monitoring circuits built into the controller to ensure the utmost safety.

Elite 9500 Series

For a seamlessly perfect integrated home elevator, look no further then the Elite model of PLI WD-9500 and HD-9500 series elevators. The Elite effortlessly transport 950lbs up to 50′ in travel, at a rate of 40 fpm! Swing doors contain safety interlocks that are used to protect each floor level while blending with all other interior doors within your home. There are a wide range of cab sizes offered and an array of finishes available to match your house’s décor.

System Overview

A precision gear-motor assembly is mounted at the top of machined steel guide rails. This machine assembly raises and lowers the elevator via two 3/8” diameter elevator grade steel cables. The motor and integrated brake are controlled using a Variable Frequency Drive that ensures excellent ride quality and low noise levels. Electric door locks and gate switches ensure the safety of passengers inside the elevator and bystanders at the floor levels.

Key points on purchasing a home elevator.

  • CONVENIENCE • a home or residential elevator provides convenience when carrying heavy loads, purchasing new furniture or even moving laundry.
  • ACCESSIBILITY • a residential elevator gives everyone access to your multi-story home.
  • INCREASED HOME VALUE • a residential elevator is proven to add value to your home and make it more appealing to a broader group of home buyers.
  • LUXURY • a residential elevator adds a splash of luxury to your home and makes it unique.

When choosing the Elite, you get superiority!

  • Superior ride quality through the use of state of the art motor control technology.
  • Ultimate reliability through the use of industrial grade PLC controls.
  • Simple and inexpensive to maintain and repair.
  • Non-proprietary controls. Modular design allows most parts and sensors to be individually replaced versus being forced to replace complete circuit board assemblies.
  • Hassle-free tech support and warranty policy.
  • Aluminum components for added corrosion resistance.
  • Engineered installation brackets and tools for a quick installation.
Elite – 9500 Series

Cabs are available in the following heights.

  • 6’ 8”
  • 7’ 0”
  • 8’ 0”

(Note: High cabs require additional overhead clearance)

Standard

Melamine in choice of: white, beige, black or light oak.

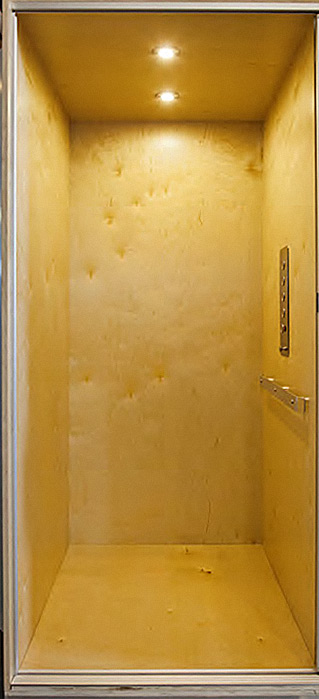

Elite 9500 Standard Cab
Raised Panel

Elegant cab with choice of base wood species and raised hardwood molding.

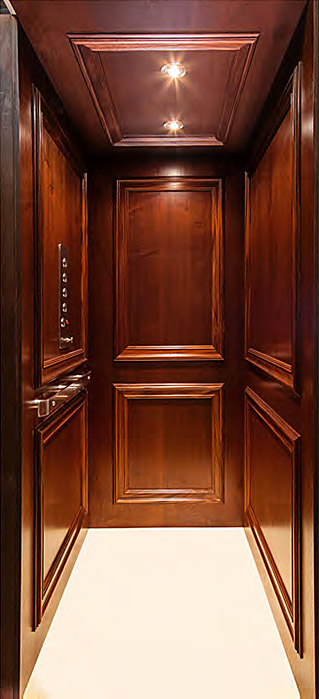

Elite 9500 Raised Panel Cab
Shaker

White cab with raised paneling on lower half of cab.

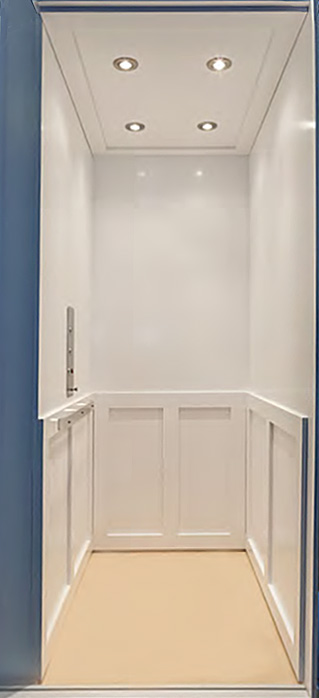

Elite 9500 Shaker Cab

Available Upgrades:

  • Unfinished Birch
  • Unfinished Oak
  • Unfinished Mahogany
  • Unfinished Cherry
  • Birch w/ Clear Coat

Available Upgrades:

  • White
  • Unfinished Birch
  • Unfinished Oak
  • Unfinished Mahogany

CAPACITY 950 lbs

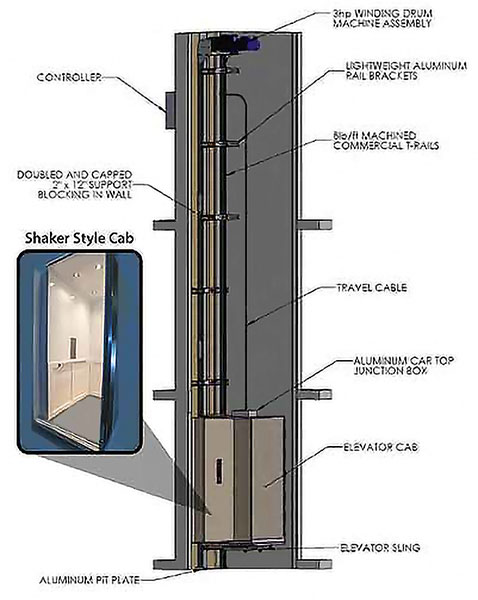

Elevator drawing and cab layout

Left Hand Door Lock

Door Lock Left Hand

Right Hand Door Lock

Door Lock Right Hand
Cab Sizes

Standard Sizes*

  • 36” W x 36” D
  • 36” W x 48” D
  • 48” W x 36” D


Optional Sizes*

  • 36” W x 60” D
  • 42” W x 54” D

Custom Sizes Available

*Approximate I.C.D. (standard)

Cab Heights

Standard

  • 6’ 8” (80”)

Optional

  • 7’ 0” (84”)
  • 8’ 0” (96”)
OVERHEAD CLEARANCE REQUIRED
  • 6’ 8” cab requires 102”
  • 7’ 0” cab requires 108”
  • 8’ 0” cab requires 117”

Measured from top landing floor level to lowest point in elevator shaft.

NOMINAL SPEED : 40 fpm
MAX TRAVEL : 50′
MAX LANDINGS : 7

POWER REQUIREMENT

230V with 30amp circuit / 110V
with 15amp circuit

DRIVE SYSTEM

VVVF motor controls and geared winding drum machine

  • Standard – Overhead Winding Drum
  • Optional – Roped Hydraulic
PIT DEPTH

8” minimum, 12” recommended

CAR DOOR

Electromechanical door interlocks

CONTROLS & SWITCHES

Automatic operation, optical
leveling, industrial PLC controls, ETL listed controller, Floor buttons, alarm button in cab, hall station
floor buttons, emergency stop switch.

Lighting Options

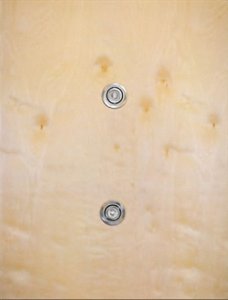

Two Recessed LED Lights

  • Standard

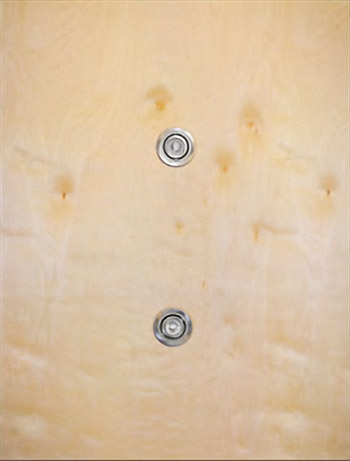

9500 Series 2 Light Ceiling System

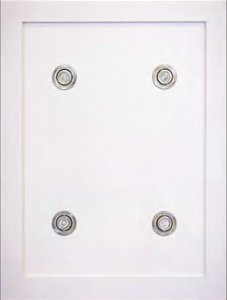

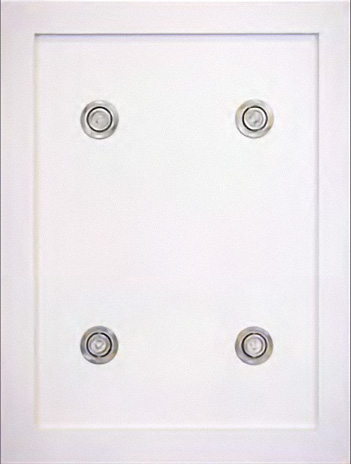

Four Recessed LED Lights

  • Available Upgrade
9500 Series 4 Light Ceiling System

LED lights, 3” diameter, stainless steel trim ring.

Gate Options

White panel accordion gates come standard with all elevators. Custom gates are also available to compliment different architectural styles and tastes.

White Panels

  • Standard

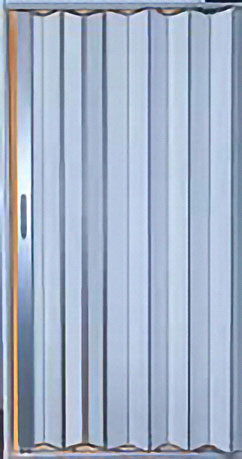

White panels for 9500 series PLI elevators

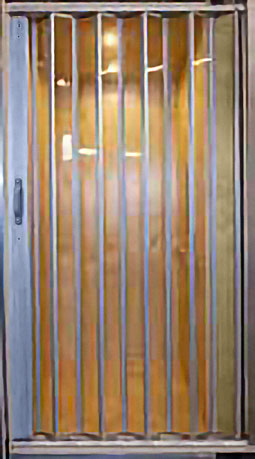

Clear Panels

  • Available Upgrade
Clear panels for 9500 series PLI elevators
Fixture Options

Stainless Steel

  • Standard
PLI 9500 Series Stainless Steel Panel


Muntz Bronze

  • Available Upgrade
PLI 9500 Series Muntz Bronze Panel
Handrail Options

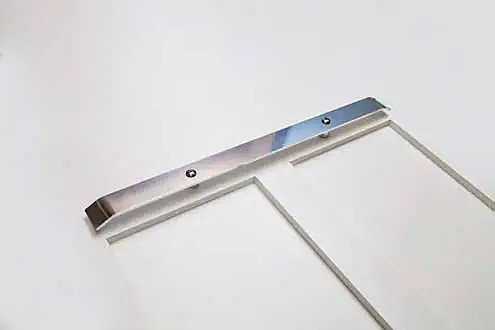

Flat Bar

  • Standard

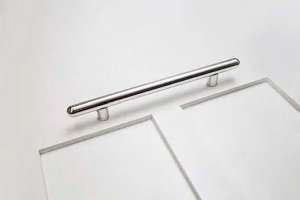

Round Bar Handrail 9500 Series

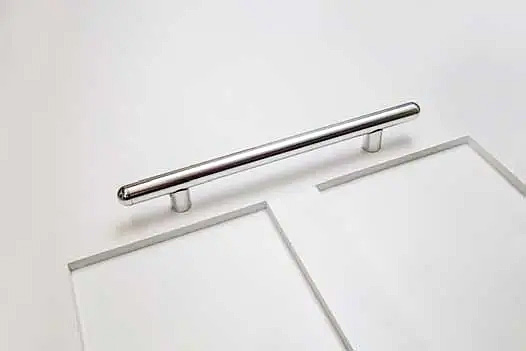

Round Bar

  • Available Upgrade
Flat Bar Handrail 9500 Series

Polished aluminum handrails.

Standard Elevator Cab Finishes

Laminates

  • White Laminate (Finish Options N/A) -Standard

Wood Species

  • Maple/Birch
  • Oak
  • Cherry
  • Mahogany

Finish Options

  • Unfinished / Raw wood veneer – Standard
  • Prefinished with a custom MINWAX Wood Finish stain*
  • Prefinished with no stain / clear coat only
  • Prefinished with a standard stain selection from below

*MINWAX custom color options

Classic Gray

Classic Gray Cab Finish

Natural

Natural Cab Finish

Sedona Red

Sedona Red Cab Finish

Gate Options

A white vinyl gate or a clear view gate are standard options. Additional gate options: Tinted Acrylic & Vinyl Laminate Woodgrain.

Tinted Acrylic Gate

White Vinyl (Standard)

White Vinyl Gate Panel

Tan Vinyl

Tan Vinyl Gate Panel

Gray Vinyl

Gray Vinyl Gate Panel

Black Vinyl

Black Vinyl Gate Panel

Vinyl Laminate Woodgrain Gate

Maple Vinyl

Maple Woodgrain Laminate Gate Panel

Natural Oak Vinyl

Natural Oak Vinyl Gate Panel

Cherry Vinyl

Cherry Veneer Gate Panel

Mahogany Vinyl

Mahogany Woodgrain Laminate Gate Panel

Natural Hardwood Veneer

Maple

Maple Woodgrain Laminate Gate Panel

Oak

Natural Oak Vinyl Gate Panel

Cherry

Cherry Hardwood Veneer

Mahogony

Mahogany Veneer Gate Panel
